RXPro Lab Management Software

Coburn’s RXPro Lab Management Software introduces cutting-edge technology for both conventional and freeform lens processing. Designed for small to medium-sized labs, it offers powerful features, improved accuracy, and an intuitive workflow, all at an affordable price.

Download OPTIPRO Catalogue

Customizable User-Friendly Design

  • Reduce training time with an intuitive interface
  • Easy-to-use menu-based software
  • Password-protected access for secure features

Lens Database

  • Auto-generation of lab-specific lens database
  • Vision Council format compatibility
  • Easy Excel-based parameter management

Blanks Inventory

  • Track full and in-hand stock accurately
  • Automatic synchronization with database
  • Real-time updates for inventory changes

Device Interface

  • RS232 & TCP/IP integration support
  • Live machine monitoring dashboard
  • Centralized job tracking system

Reports & Analytics

  • Detailed statistical reporting
  • Pie charts & bar graph visualizations
  • Daily, monthly, yearly summaries with filters

File Processing

  • ERP integration via RXI files
  • Color-coded job status logs
  • Manual review & multi-job editing

Client/Server Module

  • Supports multiple job entry stations
  • Optimized for high-production labs

Label Printing

  • Barcode label generation
  • Accurate tracking for production & distribution

PRISMATIC BLOCKING

Spectrum Blocker Series

Designed for compatibility with all common surfacing machines, the Spectrum Prismatic Lens Blocker provides extremely precise alignment of the lens at the correct prism angle.

Prismatic Blocker

Available in Three Models

Prismatic Blocker

Base Model, Wax Blocking

Prismatic Blocker

Prismatic Model, Alloy Blocking

Prismatic Blocker

Plano Model, Alloy Blocking

DIGITAL GENERATING

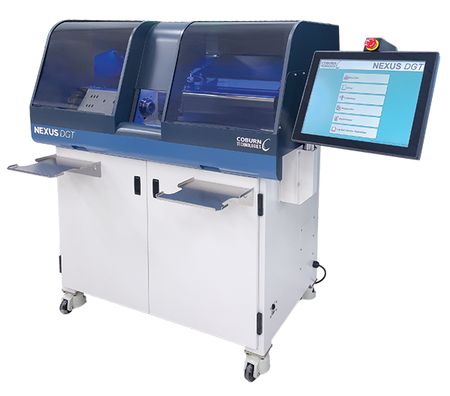

NEXUS DGT

The NEXUS Digital Surfacing System leverages advanced technology from the acclaimed Cobalt Digital Lab to produce high-quality digital Rx lenses. The system includes the NEXUS DGT Digital Lens Generator and the NEXUS DP Digital Lens Polisher, delivering a significant upgrade in performance, speed, and precision.

  • Higher Throughput: Increased speeds for faster job processing.
  • Superior Lens Quality: Supports all lens indexes (1.498 to 1.74).
  • Automated Calibration: Built-in automatic calibration for efficiency.
  • On-Board Engraving: No need for additional engraving equipment.
  • Interrupted Cut: Advanced cutting capability on the x-axis.
  • Cold Mist / Dry Cut: Eliminates costly waste management.
  • User Friendly: Large 19” monitor with intuitive controls.
  • Automation Ready: Upgrade-ready for full lab automation.
Nexus Machine 1 Nexus Machine 2 Nexus Machine 3

DIGITAL GENERATING

COBALT NX & NXT

Cobalt NX

COBALT NX

Coburn’s Cobalt NX lens generator delivers superior lens quality in form and finish. Built with a linear motor and integrated spindle for precision, it produces highly accurate lens geometry without requiring water management.

  • Enhanced Lens Quality: Supports all indexes (1.498–1.74)
  • Automated Calibration: Faster, more efficient processing
  • On-Board Engraving: No additional equipment required
  • Interrupted Cut: Advanced cutting on x-axis
  • Cold Mist / Dry Cut: No water management needed

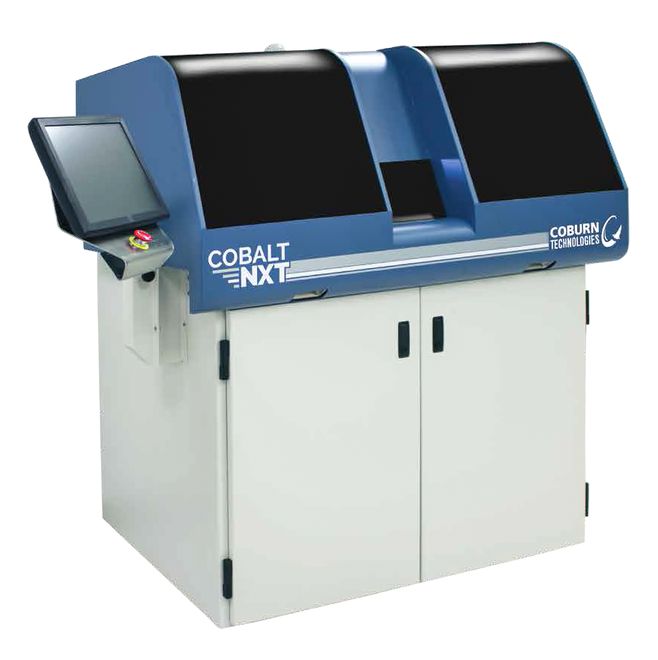

Cobalt NXT

COBALT NXT

The Cobalt NXT builds on the NX platform with advanced processing software and higher throughput. Designed for modern labs, it offers speed, scalability, and automation readiness.

  • Automation Ready: Upgrade to fully automated workflows
  • Higher Throughput: Faster processing than NX

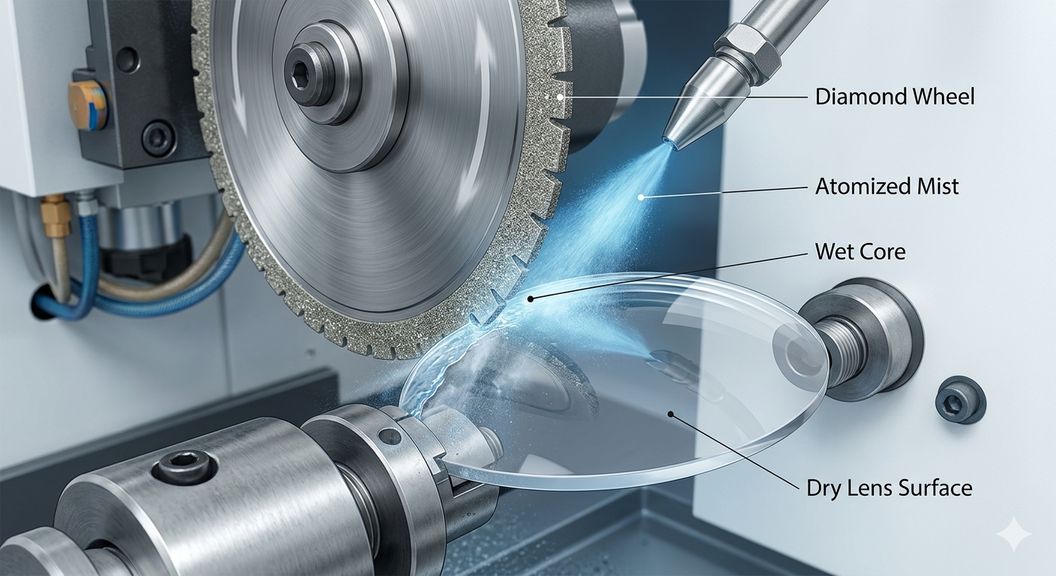

    • Cold-Mist Technology

    Cold-Mist Technology atomizes a water-based lubricant directly onto the cutting diamond, creating a “wet core” during cutting while evaporating completely afterward. This delivers surface quality equivalent to wet-cut systems, without the need for water management.

    Cold Mist Technology

    CONVENTIONAL GENERATING

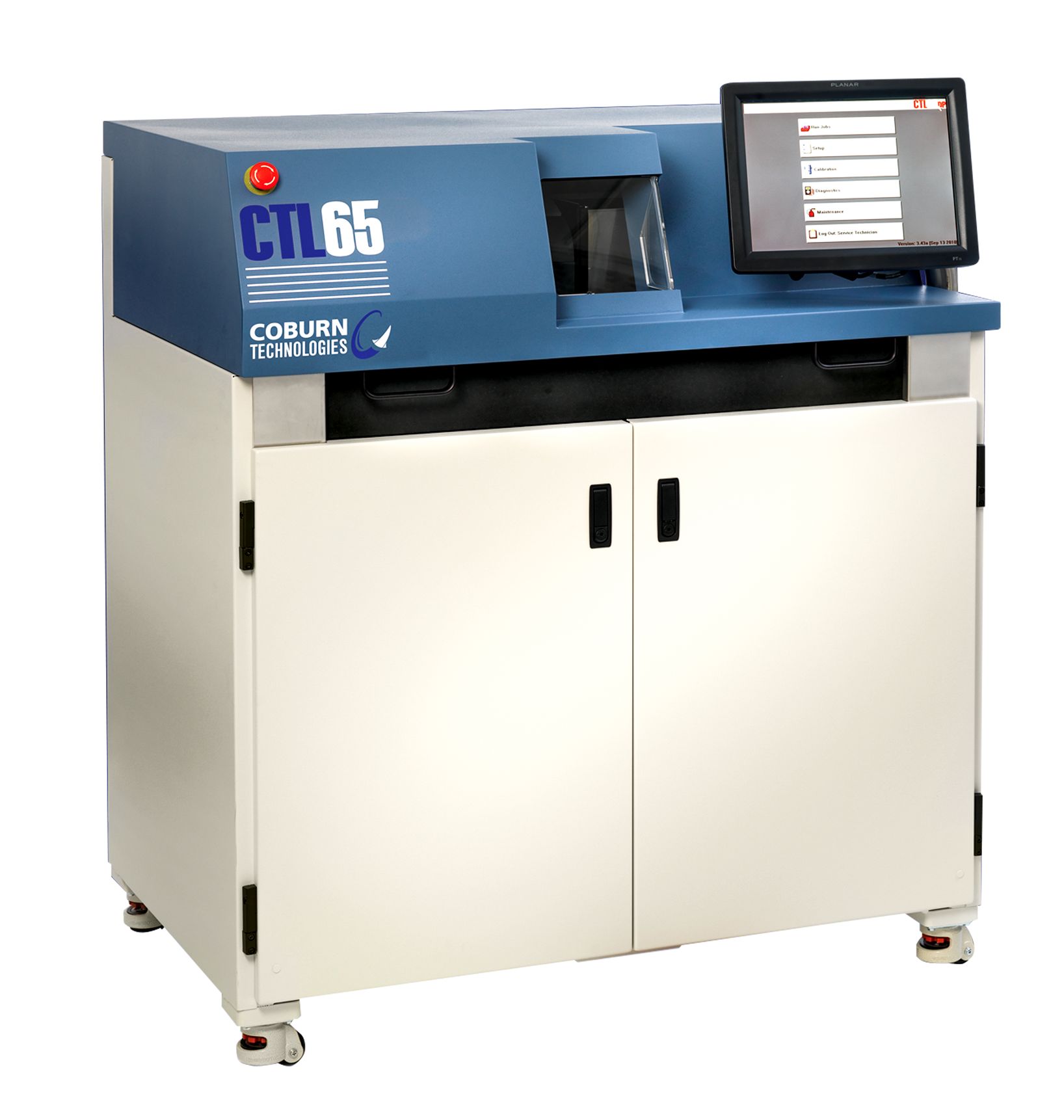

    CTL65

    The CTL65 is a compact turning lathe utilizing Coburn’s patented single-point technology to produce high-quality conventional lenses. Designed for small to medium-sized laboratories, it delivers fast, accurate surfacing, cribbing, and safety beveling, all without the need for expensive water filtration systems.

    • Patented single-point precision turning technology
    • Dry-cut system, no water filtration or chemicals required
    • Smooth surface finish for consistent one-step fining
    • Interrupted polycarbonate cutting for cleaner results
    • Granite base for stability and vibration resistance
    • Faster throughput vs SL2 generators
    • Large touchscreen interface for easy operation
    • Optional “Crib-to-Oval” cutting feature
    CTL65 Machine

    DIGITAL POLISHING

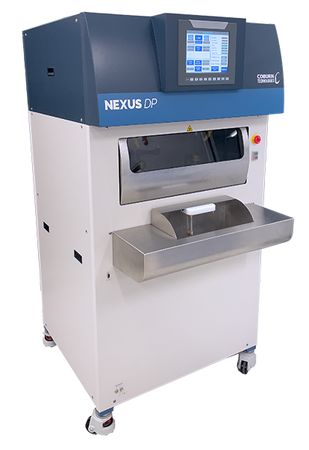

    NEXUS DP NEW

    NEXUS DP

    The NEXUS DP is the next generation of high-speed soft-tool digital lens polishing. Designed as the successor to the Cobalt DP, it delivers optically clear, haze-free lenses and integrates seamlessly with modern freeform generators.

    • Only 2 soft-tool laps required for full lens curve range
    • 80% of jobs completed with a single lap
    • Variable axis controls for precision customization
    • Haze-free polishing, no coating required
    • Manual rinse station with foot pedal
    • Dual chamber polishing for simultaneous jobs

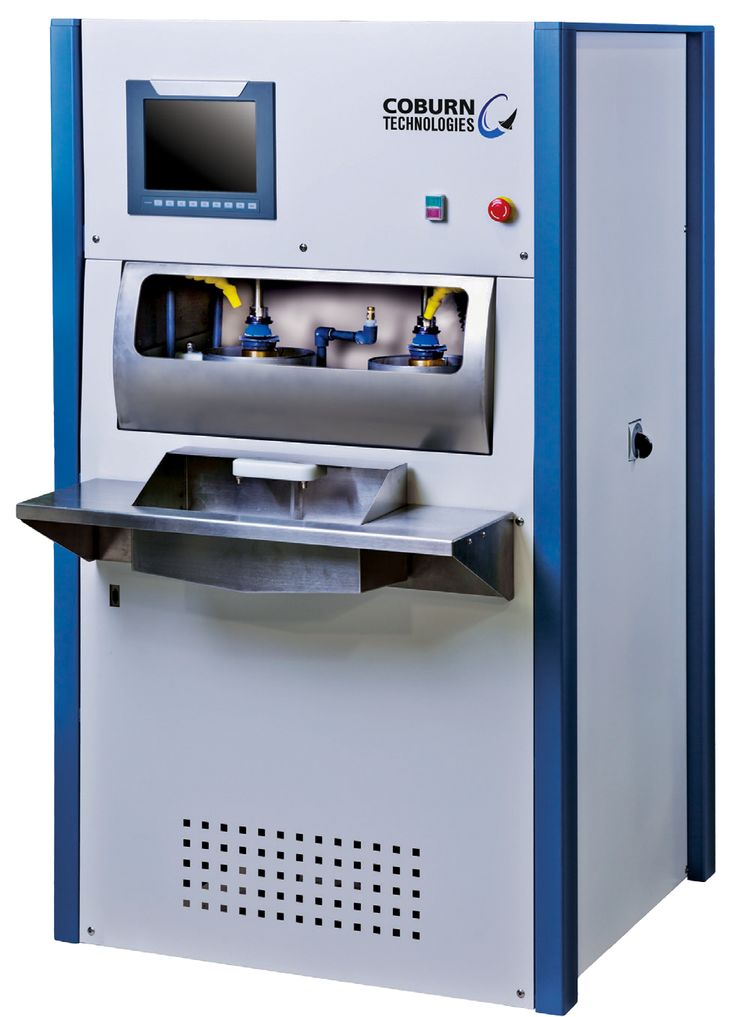

    Cobalt DP

    COBALT DP

    The Cobalt DP is a high-speed digital lens polisher built for high-volume production of both freeform and traditional Rx lenses. It produces optically clear lenses with superior surface quality, eliminating the need for hard coating for clarity.

    • High-speed polishing for large production volumes
    • Compatible with freeform and traditional lenses
    • Virtually haze-free optical clarity
    • Improved surfacing results (cut & polish)
    • Reliable performance in demanding lab environments

    IVC Lap Technology

    IVC Lap Technology uses advanced soft-tool physics combined with a unique 4-axis motion control system. This innovation allows only two tools to handle the full polishing process, simplifying operations while improving consistency, efficiency, and final lens quality.

    DIGITAL POLISHING

    Acuity Plus

    ACUITY PLUS

    A high-performance digital polishing solution designed for consistent lens quality and efficient lab workflows. Ideal for mid-to-high volume environments.

    • Reliable high-speed polishing
    • Consistent optical clarity
    • Optimized for lab efficiency
    • Scalable for growing production
    Acuity Max

    ACUITY MAX

    The Acuity Max is built for maximum throughput and advanced automation, delivering premium polishing performance for high-volume laboratories.

    • Maximum throughput performance
    • Advanced automation capabilities
    • Superior polishing precision
    • Designed for large-scale operations

    Agility Auto De-Blocker

    Agility is an automated, high-volume de-blocking solution designed to streamline lab workflows. Using a clean mechanical process, it removes lenses without water, eliminating waste while improving efficiency and consistency.

    • High-volume automated de-blocking solution
    • Completely waterless, no toxic waste
    • Up to 220 lenses per hour
    • Mechanical de-blocking for clean separation
    • Handles all lens materials (except glass)
    • Compatible with 50-90mm lenses
    • Compact footprint
    • LMS connectivity for system integration
    Agility De-Blocker

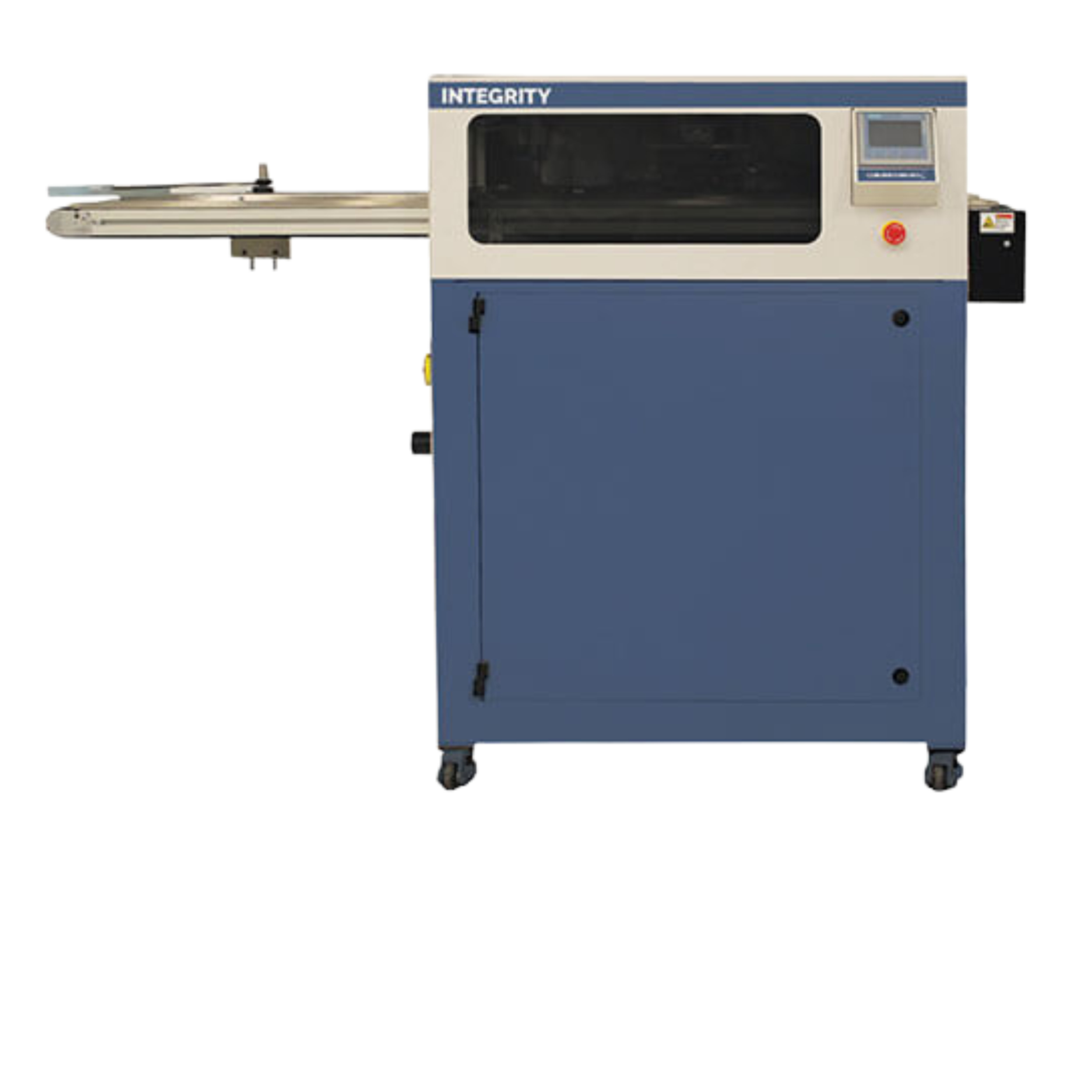

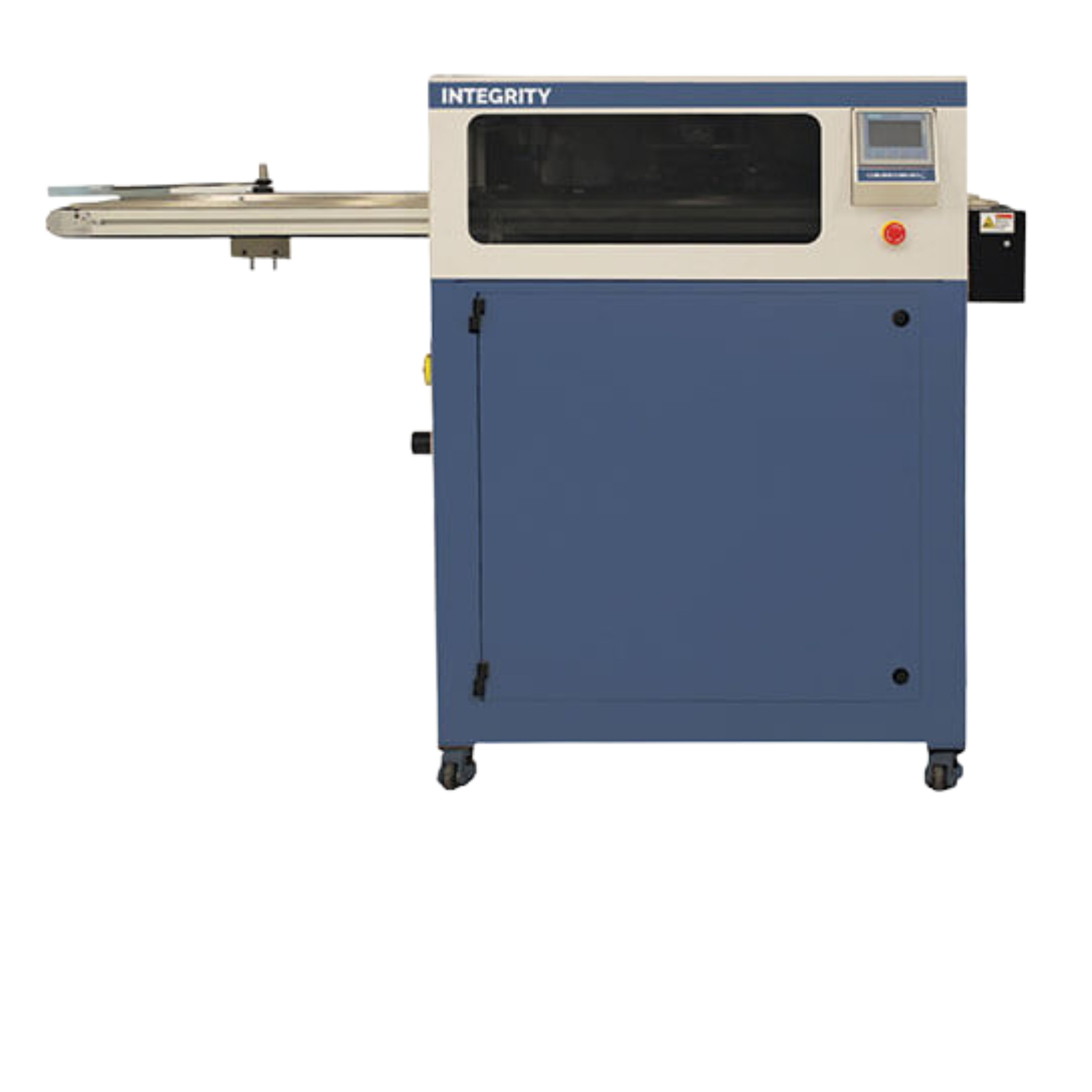

    ALLOY RECOVERY

    INTEGRITY

    The Integrity Alloy Recovery System is an advanced, fully automated solution designed to recover alloy efficiently without the use of water or hot tanks. Using induction heating technology, it separates alloy cleanly from the block, improving lab safety, cleanliness, and overall efficiency.

    • Completely waterless alloy recovery process
    • Environmentally friendly and safer operation
    • Processes up to 240 pieces per hour
    • Alloy puck remains intact and reusable
    • No remelting required before reuse
    • Separates alloy and blocks cleanly
    • Blocks collected or neatly stacked
    • Compact footprint for lab efficiency

    Best paired with: Agility Auto De-Blocker for a complete automated de-blocking and alloy recovery workflow.

    Integrity Alloy Recovery System

    LENS DE-TAPER & CLEANER

    DUALITY

    Duality expands automation in the lens production process by combining de-taping and cleaning into one fully integrated system. Designed to work seamlessly with automated coating systems, it enables hands-free processing from tape removal to coating preparation.

    • Dual Function: De-taping and cleaning in one machine
    • Fully Automated: Conveyor-fed, no manual handling required
    • Two-Sided Cleaning: Brush, detergent wash, rinse & dry
    • Fast Processing: 20–30 seconds per station
    • Labor Savings: Eliminates manual tape removal & cleaning
    • Compact Design: Less than 12ft² footprint

    Works with: Velocity Optical Spin Lens Coater for a fully automated coating workflow.

    Duality Lens De-Taper & Cleaner

    DUALITY AR

    Duality AR extends functionality by removing progressive ink markings and UV-cured blocking materials, while maintaining full automation for de-taping and cleaning.

    • Removes progressive ink markings
    • Handles UV-cured blocking materials
    • Fully automated conveyor system
    • Same compact footprint (< 12ft²)
    • 20–30 seconds per station processing

    Also available as a wash-only unit.

    HARD COATERS

    Velocity 2D AUTOMATED

    VELOCITY 2D

    The Velocity 2D is the next generation automated spin coater, designed for high-volume production and seamless integration into fully automated lab environments. It handles the entire coating process from loading to curing without operator involvement.

    • Dual coating station option (apply two coatings)
    • Fully automated load → clean → coat → cure → unload
    • Up to 130 lenses per hour throughput
    • 5-stage UV coating system
    • Automatic viscosity-controlled coating height
    • Spin speed monitoring for precision thickness
    • Thermally controlled coating consistency
    • Recipe-driven process control
    • LMS connectivity

    Best paired with: Duality Lens De-Taper & Cleaner for full automation.

    Velocity Manual

    VELOCITY MANUAL

    The Velocity Manual Spin Coater offers reliable UV coating performance using a structured five-stage process. Ideal for labs seeking precision coating without full automation.

    • 5-stage process: load, wash, coat, cure, unload
    • Up to 120 lenses per hour throughput
    • Thermally controlled coating station
    • Consistent coating viscosity
    • Recipe-driven process control
    • LMS connectivity
    • Easy service and diagnostics access

    HARD COATERS

    Velocity LTE FLEXIBLE CONTROL

    VELOCITY LTE

    The Velocity LTE is a backside UV-cure spin coater designed for small to mid-sized labs that require precision control over their coating process. With independent spindle control and customizable curing profiles, it delivers consistent, high-quality results across a wide range of lens materials.

    • Independent spindle speed control
    • Recipe-driven coating environment
    • Custom cure profiles for high index lenses
    • Auto-priming function
    • Eliminates overspray
    • Up to 80 lenses per hour
    • Compact footprint
    • Intuitive user interface

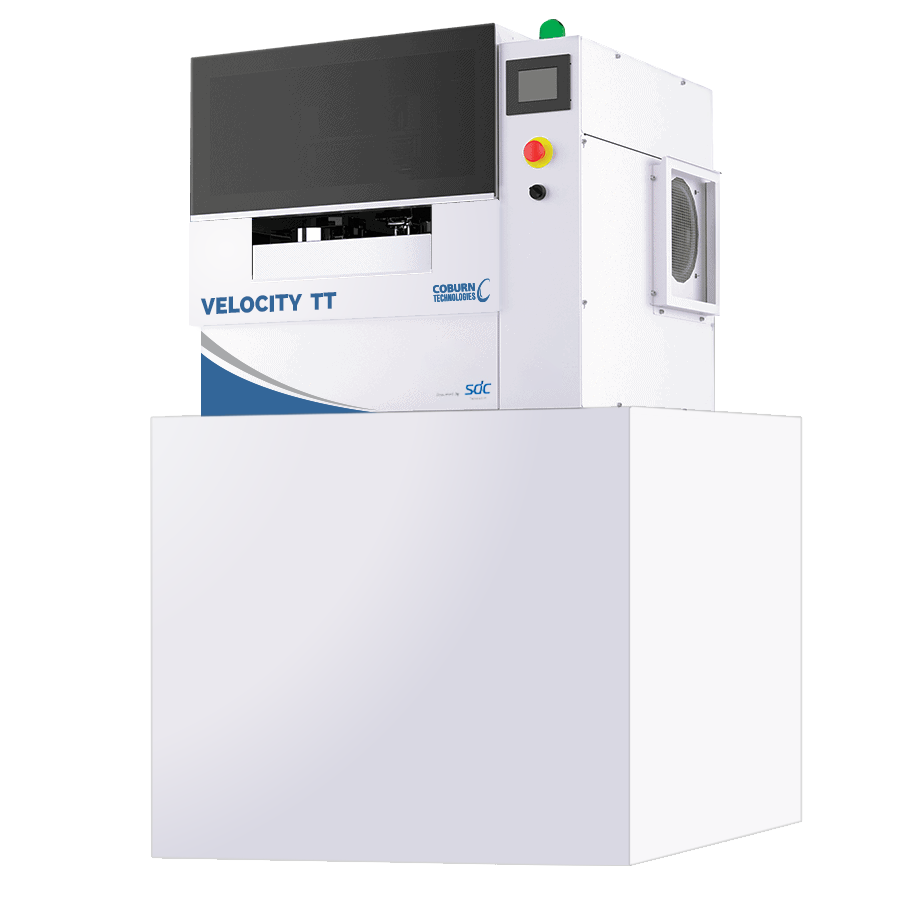

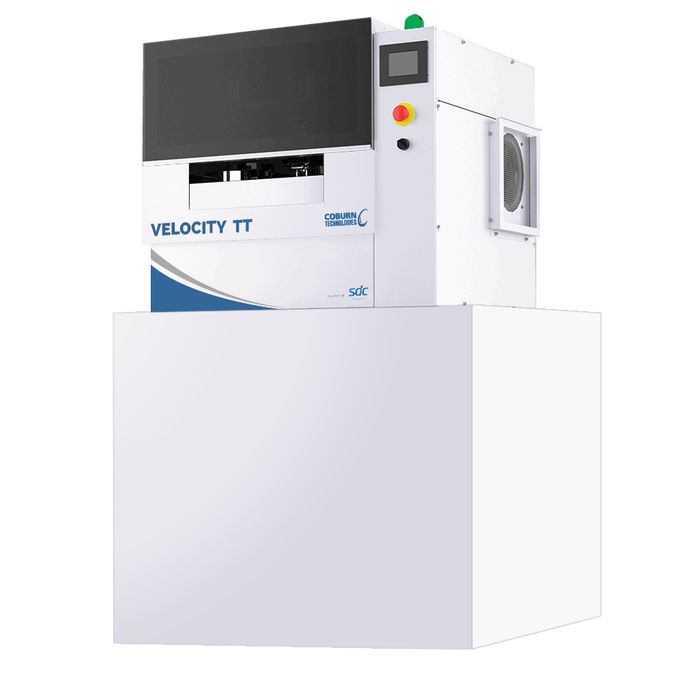

    Velocity TT

    VELOCITY TT

    The Velocity TT is a compact, tabletop spin coater offering an affordable solution for in-house lens coating. Ideal for smaller labs, it delivers consistent performance while reducing reliance on outsourced coating services.

    • Compact tabletop design
    • Cost-effective coating solution
    • 40–50 lenses per hour throughput
    • Set-and-forget operation
    • Consistent spin speeds and uniform coatings
    • No constant calibration required
    • Supports all solids coatings
    • Improves turnaround time by eliminating outsourcing

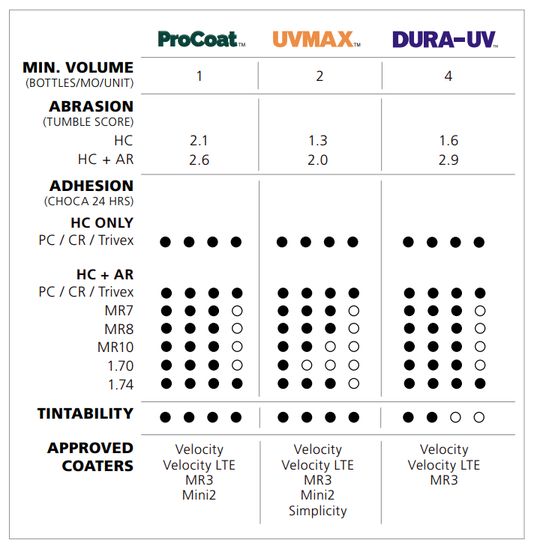

    COBURN HARD COATINGS

    Coburn Hard Coatings Coburn Hard Coatings Coburn Hard Coatings

    Our coatings are developed with an unsurpassed inline quality control process using only the highest quality raw materials. ProCoat, UVMAX, and DURA-UV are all UV-cured, spin-on backside hard coatings designed for superior performance and durability.

    • Quick UV curing
    • Hybrid Cross Linking Technology™
    • Excellent adhesion to AR coating
    • High abrasion resistance
    • High optical clarity with low yellow index
    • Advanced filtration and purification
    • Low viscosity with long life cycle
    • Higher yields at lower cost
    • Compatible with standard UV curing systems
    • No volatile solvents
    Lens Coating Detail

    LENS SURFACING LABS

    NEXUS is designed to scale seamlessly with your business’s freeform lens production needs. These lab configurations offer modular, scalable solutions, from entry-level setups to fully automated freeform production systems.

    Lab Type
    Software
    Blocker
    Generator
    Polisher
    Coater
    NEXUS FREEFORM LAB
    RXPro
    Spectrum
    NEXUS DGT
    NEXUS DP
    Velocity Manual
    COBALT FREEFORM LAB
    RXPro
    Spectrum
    Cobalt NX
    Cobalt DP
    Velocity LTE
    CUT-TO-POLISH LAB
    RXPro
    Spectrum
    CTL65
    Acuity Max
    Velocity LTE
    PREMIER LAB
    RXPro
    Spectrum
    CTL65
    Acuity Plus
    Velocity TT

    Technical Characteristics

    Nexus Generator

    Specification NEXUS Generator Cobalt Generator CTL65
    Power Single Phase 230V/10A Single Phase 230V/10A Single Phase 230V/20A/50/60 Hz
    Dimensions 53”W x 30.5”D x 63”H
    1346 x 775 x 1600mm    		 56”W x 36”D x 65”H
    1422 x 914 x 1651mm    		 47”W x 31”D x 51”H
    1194 x 787 x 1295mm
    Weight 1415lbs / 642kg 1415lbs / 642kg 1200lbs / 544kg
    Blocking Pin Style / Acublock / Loh Style Pin Style / Acublock / Loh Style Acublock / Pin Style / Loh Style
    Curve Range +7 to -20D +7 to -20D +7 to -20D / 10 cylinder / 10 prism
    Air Requirement 80–130 PSI @ 10 CFM 80–130 PSI @ 8 CFM 110–120 PSI @ 8 CFM
    More Details Cold-Mist Cutting Chamber Cold-Mist Cutting Chamber -

    Surface Blockers

    Specification SPECTRUM® SPECTRUM PL SPECTRUM AGILITY DUALITY / DUALITY AR
    POWER Single Phase 110V/10AMP
    Single Phase 220V/5AMP    		 Single Phase 110V/10AMP
    Single Phase 220V/5AMP    		 Single Phase 110V/10AMP
    Single Phase 220V/5AMP    		 Single Phase 200–240V, 5A, 50/60Hz (1 outlet) Single Phase 220V/25A (2 plugs)
    DIMENSIONS 22”W x 23”D x 20”H
    559 x 584 x 508 mm    		 22”W x 23”D x 20”H
    559 x 584 x 508 mm    		 22”W x 23”D x 20”H
    559 x 584 x 508 mm    		 63”W x 42”D x 73”H
    1601 x 1069 x 1855 mm    		 85”W x 38”D x 70”H
    2159 x 965 x 1778 mm
    WEIGHT 130 lbs / 59 kg 130 lbs / 59 kg 130 lbs / 59 kg 722 lbs / 328 kg 1282 lbs / 582 kg
    BLOCKING Loh Style Loh Style Pin Style - -
    AIR REQUIREMENT 90 PSI @ 3 CFM 90 PSI @ 3 CFM 90 PSI @ 3 CFM 80–100 PSI, 5.5–6.9 bar, 17 SCFM 80 PSI @ 7.6 SCFM
    THROUGHPUT - - - Up to 220/hr 120–150/hr
    MORE DETAILS Uses alloy blocking compound Uses alloy blocking compound Uses wax blocking compound All materials except glass. 50–90mm lens diameters. 2mm min. overhang Available with or without heating (240V) and/or as a wash-only machine

    Alloy Recovery

    Specification Integrity (Alloy Recovery) Nexus DP Cobalt DP Acuity Max Acuity Plus
    Power Single Phase, 16A, 208–230V, 50/60Hz Single Phase 230V/10A
    15A dedicated circuit    		 Single Phase 230V/10A Single Phase 230V/15A/50/60Hz
    3-Phase 380V/7.5A/50Hz    		 Single Phase 230V/15A/50/60Hz
    3-Phase 380V/7.5A/50Hz
    Dimensions 78”W x 55”D x 52”H
    1975 x 1392 x 1310mm    		 38”W x 47”D x 72”H
    965 x 1194 x 1829mm    		 40”W x 40”D x 71”H
    1020 x 1020 x 1810mm    		 18”W x 29”D x 54”H
    450 x 735 x 1350mm    		 18”W x 29”D x 54”H
    450 x 735 x 1350mm
    Weight 750lbs / 340kg 1000lbs / 455kg 1000lbs / 455kg 250lbs / 113kg 250lbs / 113kg
    Throughput 240 pieces/hr - - - -
    Blocking - Acublock / Pin Style Acublock / Pin Style Acublock / Pin Style Acublock / Pin Style
    Curve Range - 0 to -14D / 6 cyl / 6 prism 0 to -14D / 6 cyl / 6 prism 0 to -10D / 6 cyl / 6 prism 0 to -20D / 10 cyl / 10 prism
    Air Requirement 85–100 PSI, 6.9 bar, 1.5 SCFM 85–145 PSI @ 10 CFM 85–145 PSI @ 10 CFM 50–125 PSI @ 1 CFM 50–125 PSI @ 1 CFM
    More Details Alloy pucks ready for reuse. Blocks collected and stacked. 2 spindles, 4-axis control, isolated chambers 2 spindles, 4-axis control, isolated chambers Base curve up to 114D Extended curve capability

    Hard Coaters

    Specification Velocity 2D (Auto) Velocity 2D (Manual) Velocity 1.5 (Auto) Velocity (Manual) Velocity LTE Velocity TT
    Power 230V/30A/60Hz 220V/30A/60Hz 220V/30A/60Hz Single Phase 220V/20A/50/60Hz 220V/20A/50/60Hz 208–240VAC / 20A
    Dimensions 61”W x 61”D x 69”H
    1544 x 1545 x 1752mm    		 68”W x 57”D x 72”H
    1728 x 1448 x 1829mm    		 43”W x 34”D x 72”H
    1039 x 864 x 1829mm    		 34”W x 34”D x 69”H 864 x 864 x 1752mm 34”W x 34”D x 69”H
    864 x 864 x 1752mm    		 35”W x 32”D x 30”H
    889 x 813 x 762mm
    Weight 650–700lbs / 1433–1543kg 800–850lbs / 363–386kg 600–650lbs / 272–295kg 450-500lbs/992-1102kg 450–500lbs / 992–1102kg 280lbs / 127kg
    Throughput Up to 130/hr Up to 130/hr Up to 130/hr Up to 130/hr Up to 80/hr 40–50/hr
    Air Requirement 80 PSI @ 7.6 SCFM 80 PSI (½” line) 80 PSI (½” line) 80 PSI @ 7.6 SCFM 80 PSI @ 7.6 SCFM 80 PSI (quick disconnect)
    More Details Optional steamer Optional steamer Optional steamer - Independent spindle control Compact tabletop system
